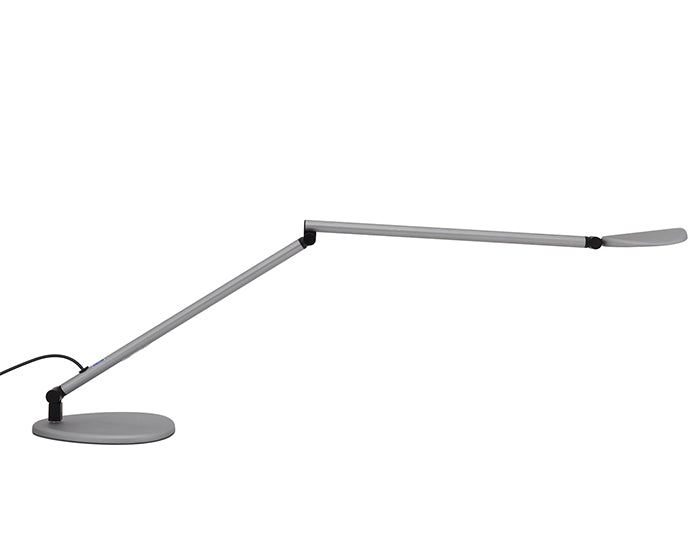

Workrite Astra 3 AST3-DA-WOB-S Double Arm Task Light

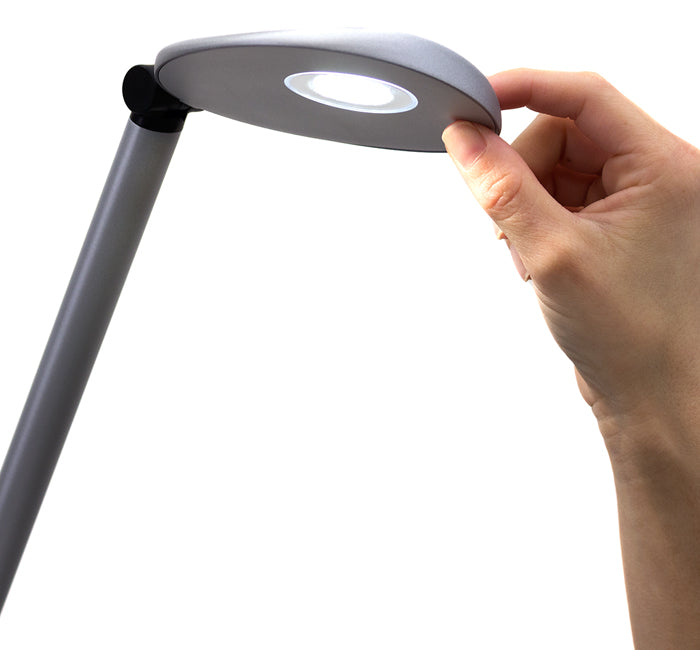

The Astra 3 Double Arm was designed to provide outstanding reach in a small footprint. With nearly 3 feet of extension from the base and a 270° rotating head, the Astra 3 Double Arm puts illumination exactly where it is needed. Clustered, high-output, high CRI LEDs provide a crisp white light with no shadowing effect in a smaller footprint.

The Astra 3 features intuitive touch button programmable controls, allowing the user to return to the same dimming level as last used. A simple double touch of the button adjusts light to maximum brightness instantaneously. Astra 3 can also be programmed for auto shut off after 5 or 10 hours of use and the plug in occupancy sensor maximizes energy savings by automatically turning off the light when the workspace is not in use.

Features & Benefits:

• 34.9" Reach from base/mount
• Multiple base options
• Bright white light output: 3100K, 93 CRI

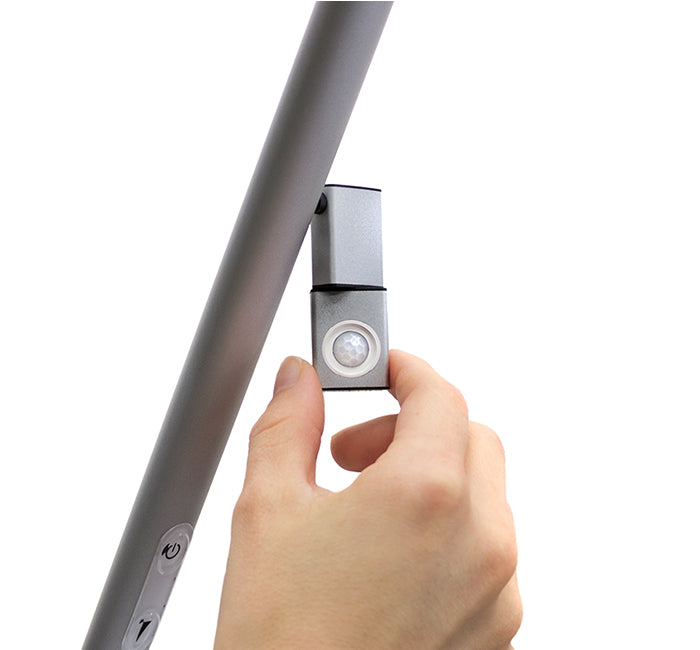

• Included occupancy sensor
• Continuous dimming from 100% – 5%

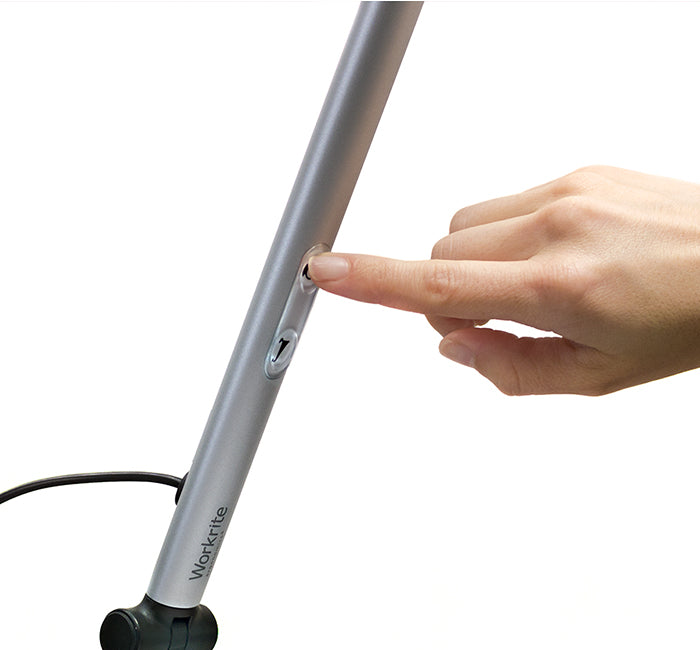

• Touch button on/off & dimming controls
• UL Certified, Energy Star Compliant Luminaires V1.2
• 50,000+ hour life LED’s (L70 rating)
• 12 W transformer included: 24 V, 0.5 A
• Class 2 transformer: 3" × 1.125" × 1.75"
• Two prong plug on 6' cord, connects to 3' cord attached to fixture
• 5 year fixture warranty
• Available in silver

Clamp Mount:

• The sturdiest and most compact mounting solution
• Two piece design provides easy installation in tight spaces
• Provides 360° of rotation at the base
• Attaches to surfaces .25" – 2.5" thick
• Dimensions: 2"W × 1.75"D × 4.5" H

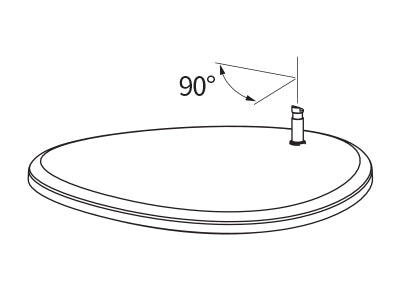

Desk Base:

• Sturdy 4 pound table base; put your light exactly where you want it
• Provides 90° of rotation at the base
• Dimensions: 7"W × 7.5"D × .3"H

Toolbar & Slatwall Mount:

• Adjustable clamp design fits any .5" – 1.75" Tool Bar or Slatwall system
• Provides 360° of rotation at the base
• Dimensions: 2.5"W × 2"D × 2.8"H

Dimensional Illustration:

Specifications:

• Foot candle power (@ 15"): 157 fc
• Light output (lumens): 384 lm
• Power consumption (wattage): 7 W
• Lumens per watt: 67 lm/W
• Photometric performance: See chart
• Light color temperature (CCT): 3100 K
• Color Rendering Index (CRI): 93 CRI
• Includes energy saving Occupancy Sensor

Photometrics:
