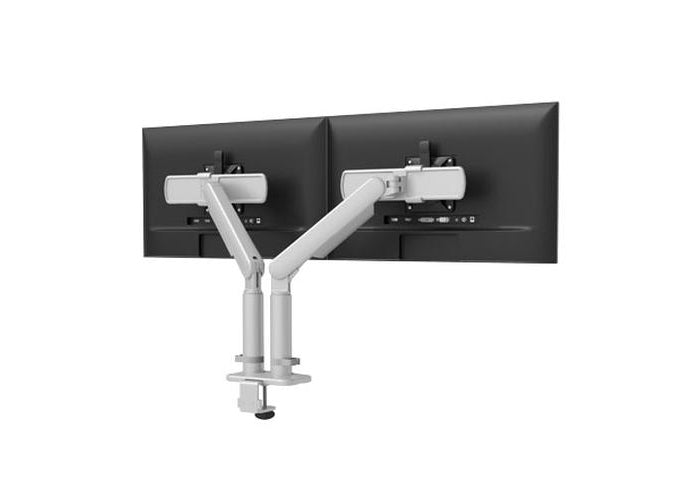

Kata Designer Series Dual Monitor Arm with Sliders

The new ESI Kata-MS Dual features a minimalist design and incorporates a reliable and smooth finger touch height adjustment feature that supports a 14.0 inch dynamic height adjustment range on top of a 6" high base. Sliders provide 9.5” of additional horizontal adjustability.

Kata-MS conveniently supports 2 monitors weighing from 2.8 - 18.2 lbs each. A tension adjustment gauge on the back of the arm allows users to see the tension levels while adjusting the arm for various monitor weights.

Retracting to a 5.5 inch depth and extending 21.0 inches, Kata MS offers a comfortable viewing distance no matter the size of the workstation. A 180 degree lockout prevents the arm from retracting past the back edge of your worksurface.

The Kata MS is capable of swiveling between portrait and landscape orientation, while also being able to tilt monitors backward 90 degrees and forward 25 degrees.

Kata2-MS Brochure PDF

Features & Benefits:

• Sliders provide 9.5” of additional horizontal adjustability
• Finger touch dynamic height adjustment
• 6" base height
• 14.0” height adjustment range:  3.0”–17.0” (low/high)
• 21.0” arm extension - 5.5” arm retraction
• +90º/-25º tilt
• ±90º rotation
• 180° lock-out feature
• Integrated cord management
• Partially assembled for quick installation
• Desk clamp or grommet mount included
• Capable of portrait and landscape orientation
• Tension adjustment indicator for precision installation
• Integrated tool holder within the VESA plate keeping hex key accessible

Specifications:

• 32” max. monitor width (bezel measured left to right)
• 6" base height
• Recommended for worksurfaces deep or less
• VESA 75mm/100mm quick release
• 2.8 lbs - 18.2 lbs per monitor weight capacity
• Warranty: 15 yr.

Design Story:

Envisioning a distinctive monitor arm with enhanced ease of use, ESI partnered with design firm Roger Webb Associates. Known for strategies that reshape and transform product portfolios, Roger Webb’s insight was essential to the Kata. The first step on the path to a remarkable new design.

The design was carefully tested so that it could accommodate a variety of monitor weights and sizes without compromising ease of movement. The access points were attuned to the sensitivity of touch screens so that the arm could easily function with any type of user engagement. The Kata arm could now adapt to any customized workstation with single or dual monitor configurations. The result is a monitor arm elegantly refined with instinctive access points that pivot responsively and precisely to touch. The Kata’s versatility and ease of adjustment bring dynamic design performance to any workspace.

The design team stripped away unnecessary attributes from the typical monitor arm. Working with wooden prototypes, they continuously reduced the clutter to get to the bare essence of what made an arm flex dynamically while also providing stability once a position was set. These refinements achieved an ideal balance between flow and support. Distinctive in appearance, the scaled down design emphasized the key pivot points, making adjustment intuitive and effortless.

The team fine-tuned these five points of movement. The streamlined design allowed the fully functional key points of contact to be further enhanced so users could smoothly and accurately adjust height and reach with fingertip sensitivity allowing for the most precise positioning with the least effort.
